Features:
- • Metal gears
- • Mechanical load holding and dynamic brake
- • 1 Year Warranty (winch) / 6 months (rope)

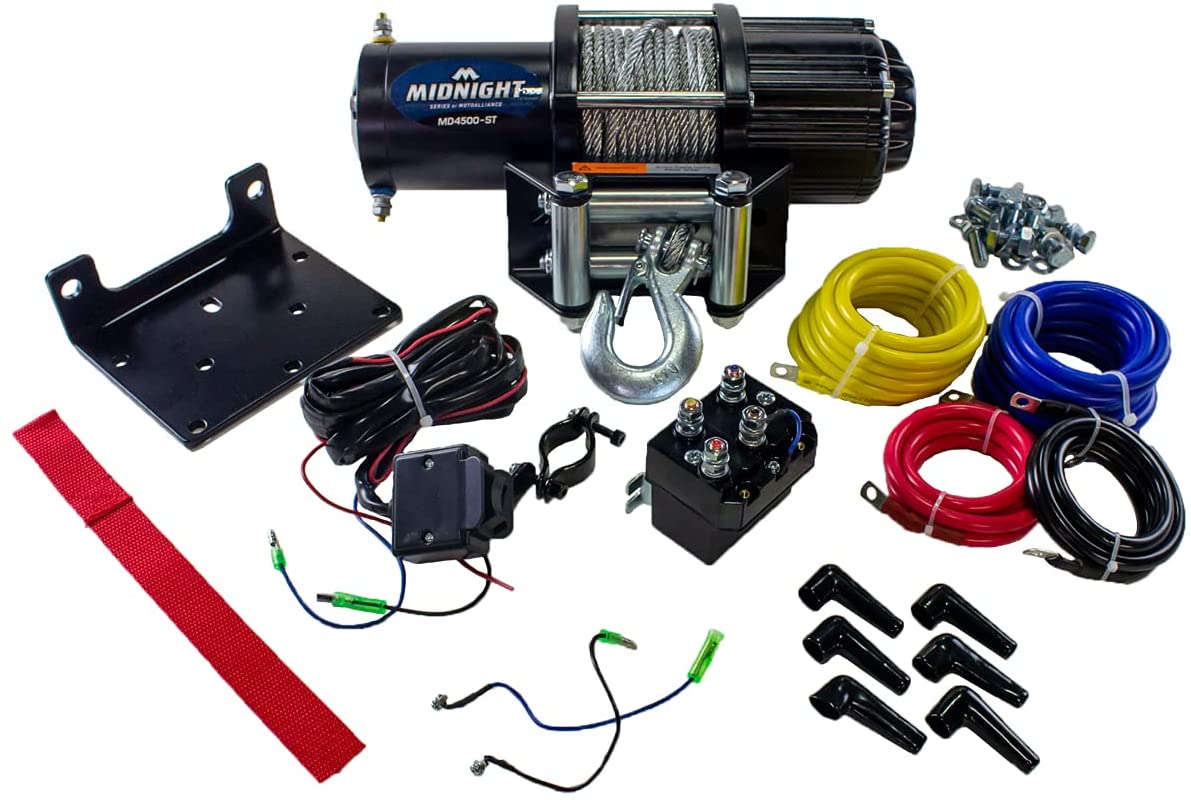

Kit Contents:
- • Steel Cable, or Choose to Upgrade to Synthetic Rope (rope includes 6 month warranty)
- • Fairlead - Roller or Aluminum Hawse based on the type of cable
- • Contactor / Solenoid & Wiring
- • Rocker Handlebar Switch
- • Clevis Hook
- • Universal Fairlead Mount Plate
- • Installation Hardware and Instructions
Specs:
- • Cable - 50 feet of Steel or BLACK Dyneema
- • Dimensions:

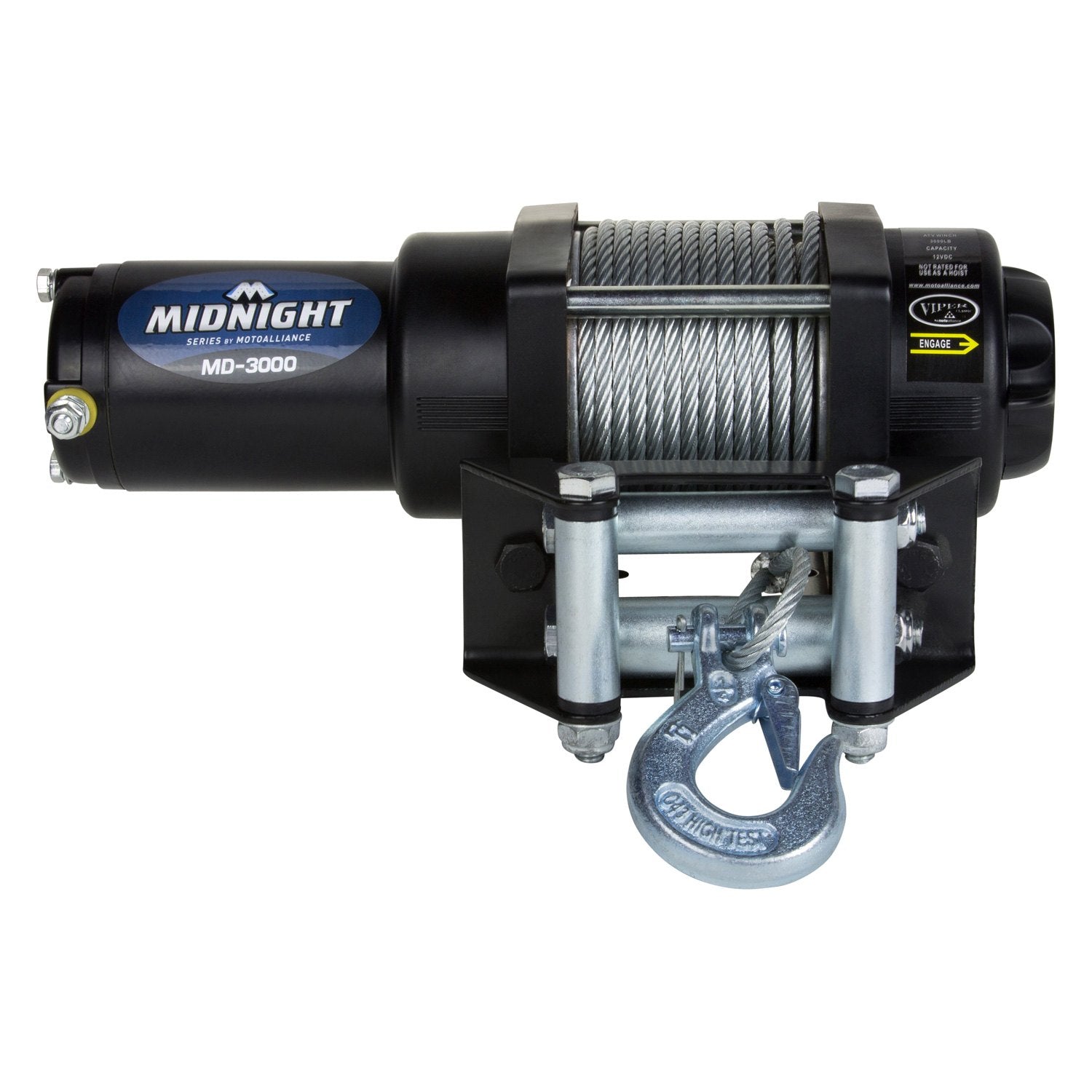

- • Midnight 3,000 : 13.6 inch (L) x 4.5 inch (W) x 4.5 inch (H)

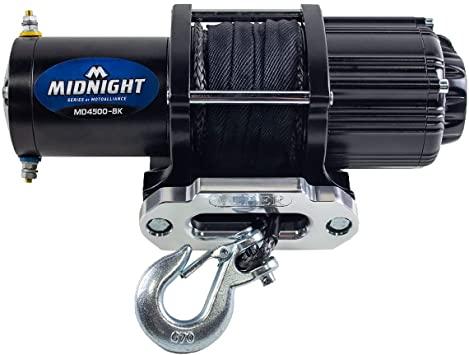

- • Midnight 4,500 : 13 inch (L) x 4.5 inch (W) x 4.75 inch (H)
- • Motor - 12V DC, permanent magnet motor
- • Brake - Mechanical load holding and dynamic
- • Gearing - Steel planetary gears
- • Wiring - [8 gauge (English) - 84/.3 (Metric)]
- • Hardware - stainless steel
- • Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123. 83mm)
Optional Extended Wiring
Two (2), 5 gauge cables, 12' each - this extra length of cable will easily reach batteries that are in the rear of the ATV/UTV.
Please Note: both ends of cables are eyelets
Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV / UTV / SxS. We have many custom mount plates designed to bolt on to your ATV / UTV / SxS.

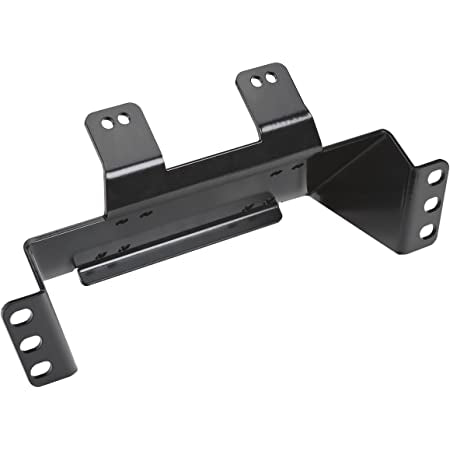

MOUNT PART # FOR RANGER MODELS
For STANDARD Spool Winches ONLY
2009-2014 Ranger HD
2011-2014 Ranger Diesel
2009-2010 Full Size Ranger 500 4x4
2009 Full Size Ranger 700 4x4
2010-2014 Full Size Ranger 800 4x4
2010-2014 Full Size Ranger 800 4x4 Crew**
2010-2017 Full Size Ranger 800 6x6
** for optimized installation an Extended Wiring Kit to reach the battery is recommended.
Please Note: will NOT work with the Full-Size Ranger XP 900 or Full-Size Ranger XP 900 Crew
MA11900W
for WIDE Spool Winches ONLY
2009-2014 Ranger HD
2011-2014 Ranger Diesel
2009-2010 Full Size Ranger 500 4x4
2009 Full Size Ranger 700 4x4
2010-2014 Full Size Ranger 800 4x4
2010-2014 Full Size Ranger 800 4x4 Crew**
2010-2017 Full Size Ranger 800 6x6
** for optimized installation an Extended Wiring Kit to reach the battery is recommended.
Please Note: will NOT work with the Full-Size Ranger XP 900 or Full-Size Ranger XP 900 Crew
MA11900_SD
Please Note: Includes Mount Plate, Hardware List, Installation Instructions. Hardware may not be included.
2009-2014 Ranger HD
2011-2014 Ranger Diesel
2009-2010 Full Size Ranger 500 4x4
2009 Full Size Ranger 700 4x4
2010-2014 Full Size Ranger 800 4x4
2010-2014 Full Size Ranger 800 4x4 Crew**
2010-2017 Full Size Ranger 800 6x6
** for optimized installation an Extended Wiring Kit to reach the battery is recommended.
Please Note: will NOT work with the Full-Size Ranger XP 900 or Full-Size Ranger XP 900 Crew
MA11901
2010-2021 Midsize Ranger EVs
2015-2017 Midsize Ranger EXTs
2010-2014 Midsize Ranger 400
2011-2020 Midsize Ranger 500
2011-2013 Midsize Ranger 500 Crew **
2014-2021 Midsize Ranger 570
2014-2021 Midsize Ranger 570 Crew **
2013-2014 Midsize Ranger 800
2016-2021 Full Size Ranger 570 (Round Tube Roll Cage)
2016-2021 Full Size Ranger 570 Crew (Round Tube Roll Cage) **
2011-2014 Full Size Ranger Diesel (900) 4x4
2013-2014 Full Size Ranger Diesel (900) 4x4 Crew **
Please Note: Electric Vehicles with an output voltage of greater than 12 Volts, a voltage transformer system must be implemented prior to using a winch. Failure to do so may result in damage to the battery system and/or winch.** for optimized installation an Extended Wiring Kit to reach the battery is recommended.
MA11904
2015-2016 Full Size Ranger 570 (Channel Tube Roll Cage)
2015-2016 Full Size Ranger 570 Crew (Channel Tube Roll Cage)**
2013-2020 Full Size Ranger 900 4x4
2014-2020 Full Size Ranger 900 4x4 Crew **
2018-2021 Full Size Ranger North Star Edition **
2017-2021 Full Size Ranger 1000 XP (2021 only accepts a wide spool winch - 3" x 6.67" bolt pattern)
2017-2021 Full Size Ranger 1000 Crew (2021 only accepts a wide spool winch - 3" x 6.67" bolt pattern) **
2015-2018 Full Size Ranger 1000 Diesel (2021 only accepts a wide spool winch - 3" x 6.67" bolt pattern)
2016-2018 Full Size Ranger 1000 Diesel Crew (2021 only accepts a wide spool winch - 3" x 6.67" bolt pattern) **
** for optimized installation an Extended Wiring Kit to reach the battery is recommended.
MA11904_SD
Please Note: Includes Mount Plate, Hardware List, Installation Instructions. Hardware may not be included.
2015-2016 Full Size Ranger 570 (Channel Tube Roll Cage)
2015-2016 Full Size Ranger 570 Crew (Channel Tube Roll Cage)**
2013-2020 Full Size Ranger 900 4x4
2014-2020 Full Size Ranger 900 4x4 Crew **
2018-2021 Full Size Ranger North Star Edition **
2017-2021 Full Size Ranger 1000 XP
2017-2021 Full Size Ranger 1000 Crew **
2015-2018 Full Size Ranger 1000 Diesel
2016-2018 Full Size Ranger 1000 Diesel Crew **
Please Note: Metal Grill Upgrade is included ** for optimized installation an Extended Wiring Kit to reach the battery is recommended.
MA11907
2002-2008 Ranger 2x4, 4x4
2002-2009 Ranger 6x6
2004-2006 Ranger TM
2005-2008 Ranger XP
2008-2009 Ranger Crew
Please Note: a Universal Fairlead Mount Plate is needed, and is included with all VIPER winch kits. If purchasing just this Mount Plate, the Universal Fairlead Mount Plate will need to also be purchased.
MA11913
All Rangers with an Extreme Bumper installed
Please Note: does NOT fit 2013-2015 Ranger 900 with Extreme Bumpers
MA11913_SD
Please Note: Includes Mount Plate, Hardware List, Installation Instructions. Hardware may not be included.
All Rangers with an Extreme Bumper installed
Please Note: does NOT fit 2013-2015 Ranger 900 with Extreme Bumpers
