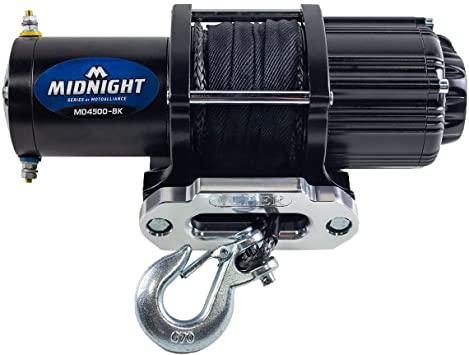

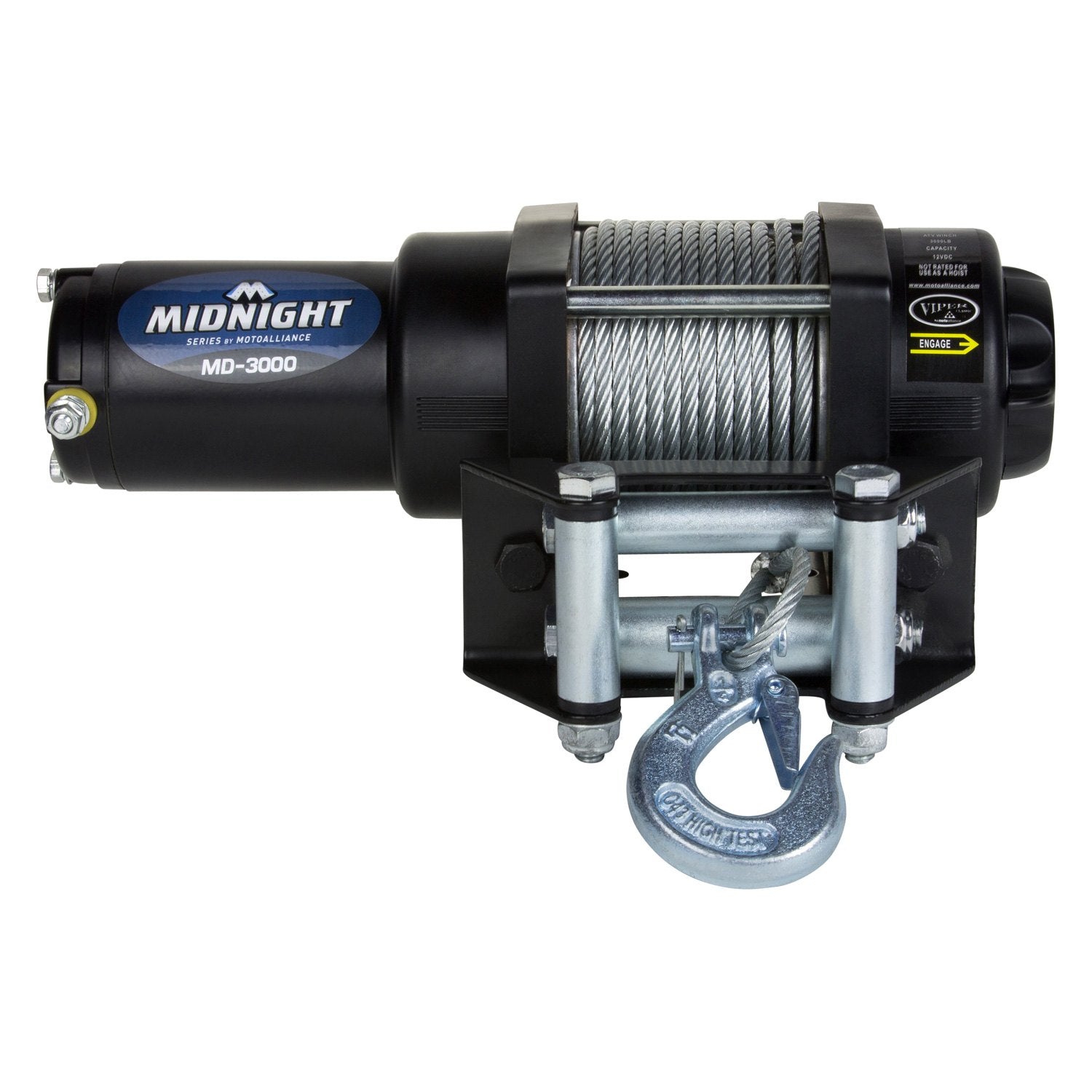

Honda Talon VIPER Midnight Series UTV / SxS winches have composite housing and all metal gears. Midnight Series winches include an automatic brake standard on them. The automatic brake is highly recommended for anyone using their winch with a plow.
Features:
Kit Contents:
Specs:
Optional Extended Wiring
Two (2), 5 gauge cables, 12' each - this extra length of cable will easily reach batteries that are in the rear of the ATV/UTV.
Please Note: both ends of cables are eyelets
Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV / UTV / SxS. We have many custom mount plates designed to bolt on to your ATV / UTV / SxS.
Features:
- • Metal gears
- • Mechanical load holding and dynamic brake
- • 1 Year Warranty (winch) / 6 months (rope)

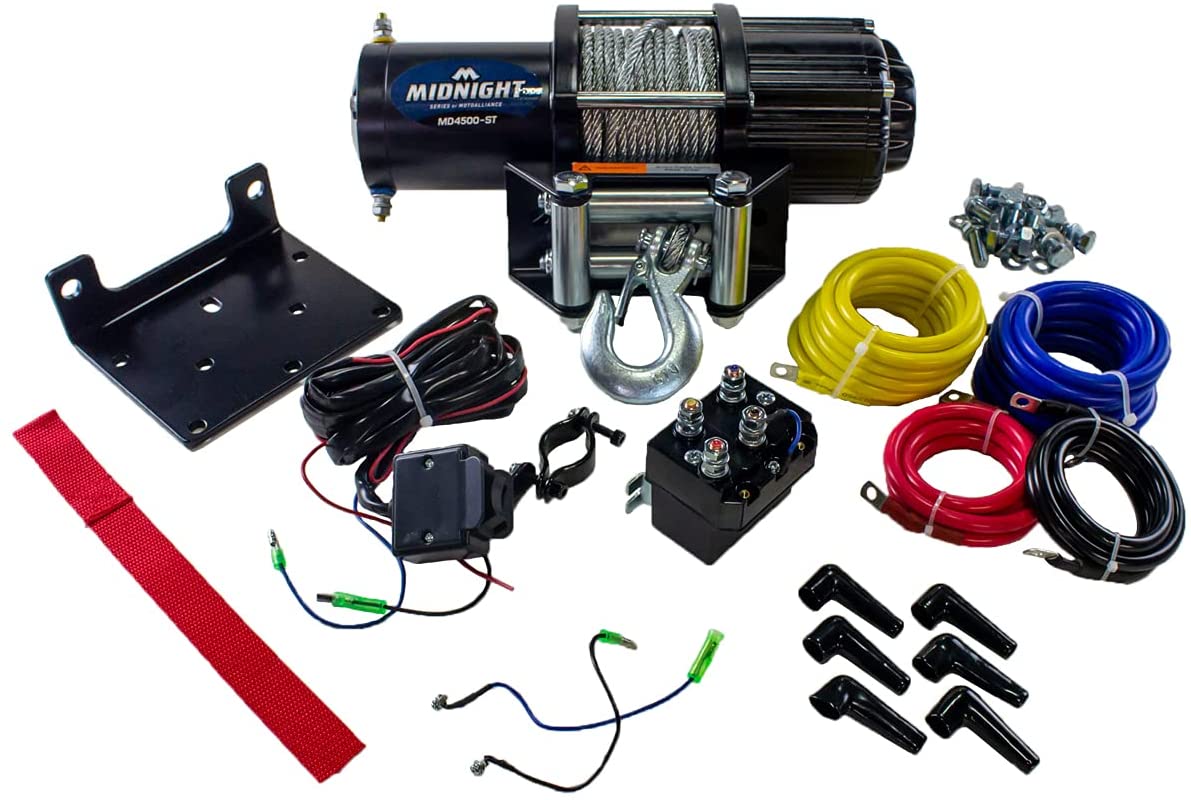

Kit Contents:
- • Steel Cable, or Choose to Upgrade to Synthetic Rope (rope includes 6 month warranty)
- • Fairlead - Roller or Aluminum Hawse based on the type of cable
- • Contactor / Solenoid & Wiring
- • Rocker Handlebar Switch
- • Clevis Hook
- • Universal Fairlead Mount Plate
- • Installation Hardware and Instructions
Specs:
- • Cable - 50 feet of Steel or BLACK Dyneema
- • Dimensions:
- • Midnight 3,000 : 13.6 inch (L) x 4.5 inch (W) x 4.5 inch (H)
- • Midnight 4,500 : 13 inch (L) x 4.5 inch (W) x 4.75 inch (H)
- • Motor - 12V DC, permanent magnet motor
- • Brake - Mechanical load holding and dynamic
- • Gearing - Steel planetary gears
- • Wiring - [8 gauge (English) - 84/.3 (Metric)]
- • Hardware - stainless steel
- • Mounting Bolt Pattern - 3.0 inch x 4.875 inch (76mm x 123. 83mm)
Dash Rocker Switch:
Optional Extended Wiring
Two (2), 5 gauge cables, 12' each - this extra length of cable will easily reach batteries that are in the rear of the ATV/UTV.
Please Note: both ends of cables are eyelets
Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" ATV / UTV / SxS. We have many custom mount plates designed to bolt on to your ATV / UTV / SxS.
